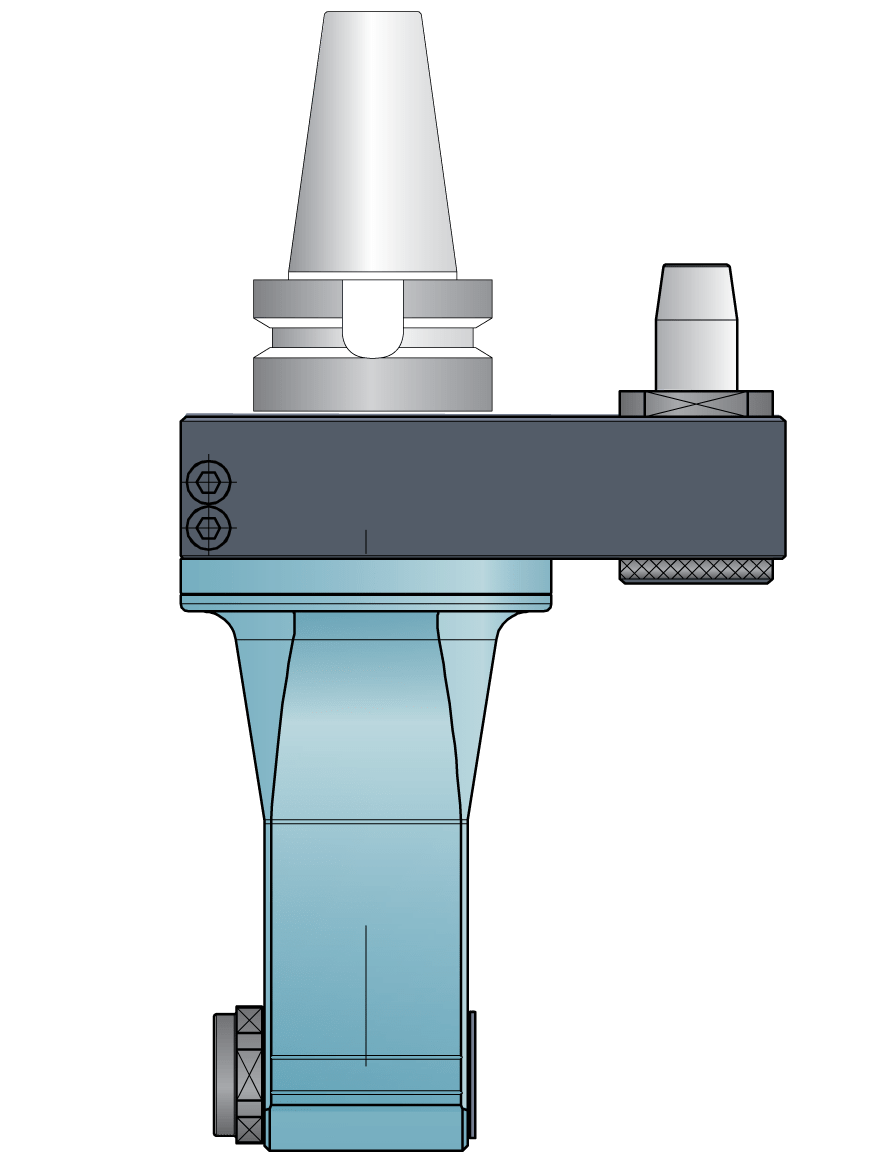

ER-11 T90/TCU ALUMINUM SERIES

The new Aluminum series is made with lighter materials and has reduced overall dimensions compared to the standard offering. This line of heads are especially suitable for lighter and smaller machines with ISO BT 30 and 40 whose tool changers can only handle limited weight.

Get a Quote

MONOLITHIC FLANGE ARM

One piece flange arm and pins grants increased rigidity and stability to the whole structure while machining. Ultra precise pitch dimension.

BEARINGS

Super precise ABEC 7 and 9 Class Bearings. They ensure perfect concentricity and stability during machining.

GEARS

Gears are made out of special hardened super alloy. They are completely ground and treated with isotropic polishing that results in a dramatic reduction of vibrations and friction.

SOLID OUTPUT SPINDLE

Solid piece spindle made out of hardened steel to increase resistance to bending stress by up to 25%. Achieve higher RPM without vibrations.

GS 600 TOOL BODY

Increased thermal stability and rigidity compared to materials such as steel and aluminum. Bearing housing surfaces are completely ground.

MECHANICAL SEALS

Special composition low friction seals reduce heat build up and keep contaminants out. High pressure rotary joint allows up to 100 Bar Coolant Pressure.
